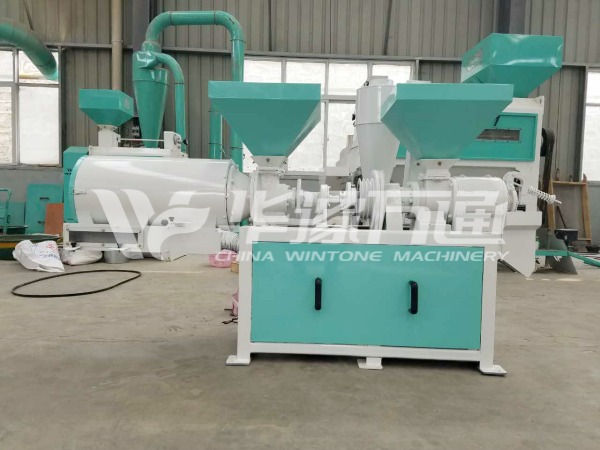

YTZSF28-5B Corn Peeling & Milling Machine

your location:Home > Corn Processing Machinery > Corn Milling Machine

 YTZSF28-5B Corn Peeling & Milling Machine is suitable for small size of food processing factories in corn hulling, grits and flour making, wheat hulling and millet polishing.

Corn Peeling & Milling Machine is our company's latest designed qualitative machine  with extensive collection of users, and als replacement corn peeling milling machine on the market  currently.

YTZSF28-5B Corn Peeling & Milling Machine Introduction:

YTZSF28-5B Corn Peeling and Milling Machine is suitable for small size of food processing factories in corn hulling, grits and flour making, wheat hulling and millet polishing. It is the core equipment for a corn processing enterprise to produce corn grits and flour. This Corn Peeling & Milling Machine is our company's latest designed qualitative machine  with extensive collection of users, and als replacement corn peeling milling machine on the market  currently.



Corn peeling and milling machine features:

1. This machine set adopts dry peeling technology. The products don’t touch water. Compared with wet peeling technology, this processing method is more sanitary.

2. This kind of machine is internally installed efficient winnowing and dust removal fan, which can remove and collect corn skin and the impurities and dust from grits processing, then eliminate and collect these skins and impurities by cyclone.

3. Low energy consumption, wide usage

4. The machine is unique and innovative, multi-functional, energy saving, low broken rate, high capacity, high yield.




Working Principle of Corn Peeling and Milling Machine:

YTZSF28-5B Corn Peeling and Milling Machine consists of corn peeling, grits and flour milling, wheat hulling and millet polishing. The clean raw grain is conveyed to the feeding inlet for peeling, degermination and black impurities removing and can be processed into corn kernels once. After smashing and mixture grading, the machine can produce three end products: medium grits, small grits and corn flour. Inside of the machine has highly efficient air draft chamber for collecting the corn skin from peeling process and further cleaning micro powder and micro impurities in the corn grits.

Spare parts: grinding core, roller, peeling blade, peeling sieve, triangular belt, hairbrush.

YTZSF28-5B Corn Peeling & Milling Machine Technical Parameter:


Model
Capacity
Power
Voltage
Spindle Speed(r/min)
Weight
Size
(KG/H)
KW
(V)
(KG)
(mm)
YTZSF 28-5B
corn peeling
corn grits
corn flour
wheat peeling
11
380
1000-1200
350
2200x900x1200
500
1000
300
400

  YTZSF 28-5B Corn Peeling & Milling Machine Technical Training and After-sales Service


1. Timely provide Party A with all the technical materials and drawings as the contract; compile and supplement operation manual according to the final commissioning results.
2. Party B offers on-site training service according to progress of the project, installing, trying operation and production of the whole line as it is required on the technical materials and drawings.
3. Party B gives training of installation, commissioning, use and maintenance to staff of Party A under their arrangement.
4. Instruct operators and maintenance staff.
5. Increase pre-sale, in-sale and after-sale service, implementing super pre-sale, full process and life long service through manufacturing, installation, commissioning and production.
6. During warranty period, Party B will provide an answer or staff within 4 hours once receiving feedbacks about quality of the products. Party B will arrive at the site as soon as possible, change and maintain the spare parts for free. The service will never stop until the clients are satisfied.
7. Beyond warranty period, Party B is on call to provide paid service for improvement of technology, maintenance of the machine or offer of the spare parts.

Case

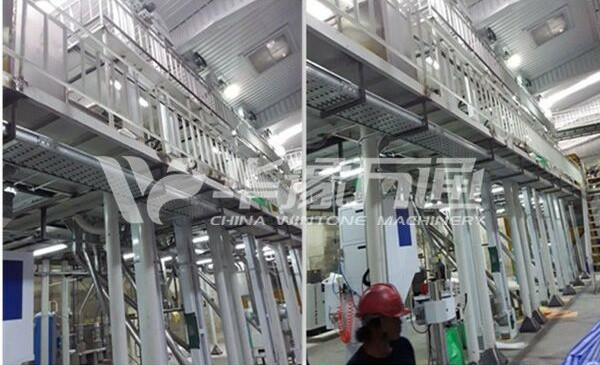

Production site
