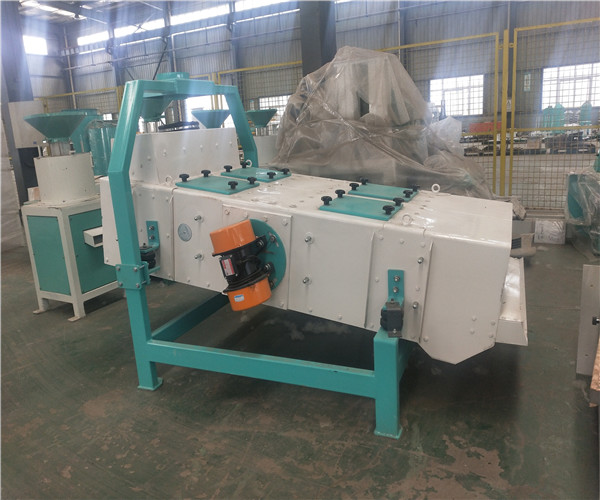

Highly Efficient Corn Vibrating Screen

Product properties
  • Summary:

    Type: TQLZ

    Frequency: 920-950R/MIN

Brief Introduction

Easy operation and maintenance due to compact design;

Excellent design provides flexibility with regard to existing spatial conditions.

Function and Feature

Small size, low weight, high output, excellent performance;
Scientific structure, stable performance, low noise, high efficiency low energy consumption;
Great sanitation thanks to enclosed structure;

Working Principle

The Corn Vibrating Screen machine is employed for cleaning and classification in flour milling, oil expression, rice milling, animal feed, food processing and chemical industry or in grain storage facilities (silos). With its different specification of sieve desks, it can remove coarse and fine impurities from wheat, corn, rice, oilseed etc, which makes it ideal equipment for small and medium-sized food processing plants.

Technical Parameter

Type

Yield
(T/H)

Power
(KW)

Vibrating
Frequency
(R/MIN)

Vibrating
Direction
Angle (°)

Amplitude
(MM)

Wind
(M³/MIN)

Weight
(KG)

Dimensions
(MM)

TQLZ80/150

4-6T

2*0.25

920-950

0-45

0-6

50

520

2500*1300*1500

TQLZ100/150

6-8T

2*0.37

920-950

0-45

0-6

60

650

2555*1618*1519

TQLZ125/200

8-10T

2*0.37

920-950

0-45

0-6

75

960

3045*1618*1565

TQLZ180/200

11-15T

2*0.75

920-950

0-45

0-6

16/120

1000

3045*2202*1753

After-sale Service

1.We are in charge of after service warranty within half a year in condition that the client conform to instruction rules.
2.We will charge accordingly due to wrong operation and maintenance.
3.We will accept change or return of the product only after technical confirmation if the machine still can not work after maintenance.
4.Warranty is not provided without inspection certificate, instruction book, invoice and machine model number.
5.Damage occurred jointly during maintenance should be in the charge of clients.
