NF28-36 Corn Grinding Machine Corn Grinding Mill in Africa

Product properties
  • Summary:

    1.Consisting functions of corn peeling, polishing, degerming, cleaning and flour milling and can produce corn flour directly used in cooking
    2.Yield:600kg/h
    3.Flour fineness:adjustable by replacing flour sieves as your requirements.

Brief Introduction

 NF28-36 African Corn Grinding Machine Introduction:

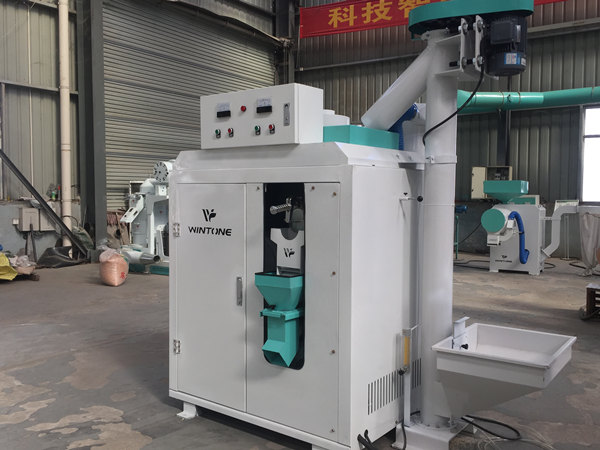

NF28-36 African Maize Flour Grinding Machine



NF28-36 African Maize Flour Grinding Machine





NF28-36 NF28-36 African Corn Grinding Machine is our newly developed corn processing equipment based on African market demand and the local diet tradition, especially the demand in white corn flour milling.



NF28-36 Corn  Grinding Machine in Africa consists of different functions together: corn peeling, polishing, degerming, cleaning and flour milling and can produce corn flour directly used in cooking. It is the ideal equipment for large quantity of corn processing enterprises and individual users for its multi-functions, compact structure, high efficiency and low energy consumption.


NF28-36 Corn Grinding Machine Structure and Working Principle:

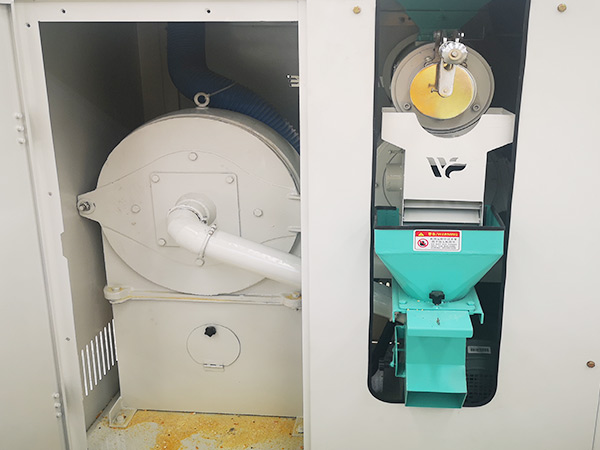

1.It is mainly composed of the following parts: conveying, peeling, air blowing, flour milling, dedusting, transmission and machine frame.

2.After cleaning, corn is blended with a small quantity of water(≤3%), and then is conveyed to the moistening barn for 7-10 minutes. Then it is sent into the peeling chamber for peeling. The mutual friction among corn, high-speed rotation iron roller and sieve plate damages the bonding strength among the corn endosperm, corn bran and corn germ and makes them separated.

After peeling, corn kernels are sent into the grinding chamber and are milled under the force of high-speed rotation, impacting and shearing. The granules smaller than the sieve plate mesh are discharged out of the machine. And the larger ones are processed repeatedly.

Then the mixing material is sent into the filtration fabric for air exhausting. At last, the flour is collected and packaged.



NF28-36 African Corn Grinding Machine Technical Parameter:


Model
原粮
Unprocessed Grain
产量
Yield
(kg/h)
风量
Air Volume
(m³/h)
重量
Weight(kg)
动力
Power
(kW)
皮杂率
Bran Rate(%)
粉粒细度
Powder Fineness(mesh)
外形尺寸
Boundary Dimension
(mm)
NF28-36
玉米
corn
600-850
2200-2600
800
22
19-30
30-60


2000×1200×3100
水稻
paddy
350-450
40-60
豆类
bean
250-350
40-60

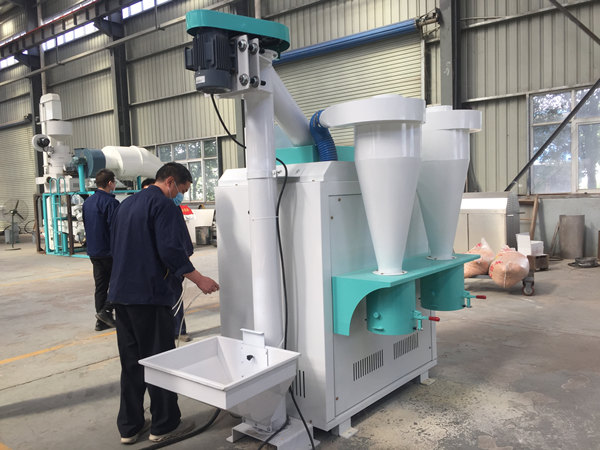

NF28-36 African Maize Flour Grinding Machine



NF28-36 African Maize Flour Grinding Machine



Function and Feature

NF28-36 Corn Grinding Machine in Africa consists of different functions together: corn peeling, polishing, degerming, cleaning and flour milling and can produce corn flour directly used in cooking. It is the ideal equipment for large quantity of corn processing enterprises and individual users for its multi-functions, compact structure, high efficiency and low energy consumption.

Working Principle

 NF28-36 African Corn Grinding Machine Structure and Working Principle:

1.It is mainly composed of the following parts: conveying, peeling, air blowing, flour milling, dedusting, transmission and machine frame.

2.After cleaning, corn is blended with a small quantity of water(≤3%), and then is conveyed to the moistening barn for 7-10 minutes. Then it is sent into the peeling chamber for peeling. The mutual friction among corn, high-speed rotation iron roller and sieve plate damages the bonding strength among the corn endosperm, corn bran and corn germ and makes them separated.

After peeling, corn kernels are sent into the grinding chamber and are milled under the force of high-speed rotation, impacting and shearing. The granules smaller than the sieve plate mesh are discharged out of the machine. And the larger ones are processed repeatedly.

Then the mixing material is sent into the filtration fabric for air exhausting. At last, the flour is collected and packaged.

Technical Parameter

 NF28-36 Corn Grinding Machine Technical Parameter:



Model

Unprocessed Grain

Yield
(kg/h)

Air Volume
(m³/h)

Weight(kg)

Power
(kW)

Bran Rate(%)

Powder Fineness(mesh)

Boundary Dimension
(mm)
NF28-36

corn
600-850
2200-2600
800
22
19-30
30-60


2000×1200×3100

paddy
350-450
40-60

bean
250-350
40-60

After-sale Service

 Corn Grinding Machine Technical Training and After-sales Service


1. Timely provide Party A with all the technical materials and drawings as the contract; compile and supplement operation manual according to the final commissioning results.
2. Party B offers on-site training service according to progress of the project, installing, trying operation and production of the whole line as it is required on the technical materials and drawings.
3. Party B gives training of installation, commissioning, use and maintenance to staff of Party A under their arrangement.
4. Instruct operators and maintenance staff.
5. Increase pre-sale, in-sale and after-sale service, implementing super pre-sale, full process and life long service through manufacturing, installation, commissioning and production.
6. During warranty period, Party B will provide an answer or staff within 4 hours once receiving feedbacks about quality of the products. Party B will arrive at the site as soon as possible, change and maintain the spare parts for free. The service will never stop until the clients are satisfied.
7. Beyond warranty period, Party B is on call to provide paid service for improvement of technology, maintenance of the machine or offer of the spare parts.
