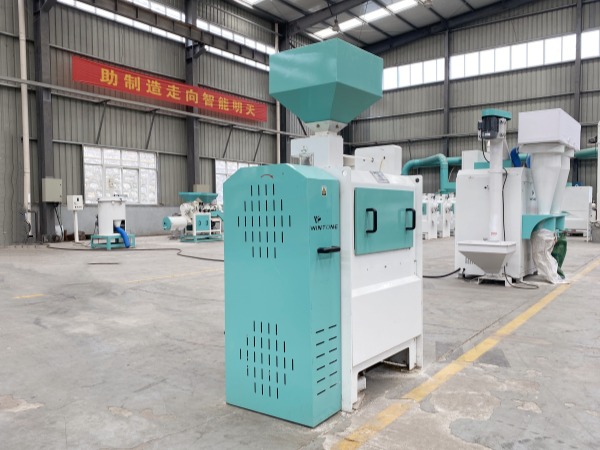

MTPS-18B High Quality Maize Peeling Machine

Product properties
  • Summary:

    MTPS-18B Maize Peeling Machine

    1. National Patent Product
    2. Application: MTPS-18B Maize peeling machine is mainly used in maize peeling and polishing and also can be used in other grains' peeling process.
    3. Capacity: 500-1500kg/h

Brief Introduction

MTPS-18B Maize Peeling Machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.

Function and Feature

MTPS-18B Maize Peeling Machine is newly improved through wide market investigation along with advantages and experiences from home and abroad. It is mainly used in beans corn, and coarse cereal processing plant for peeling and polishing.

Working Principle

 The maize goes in the propelling chamber through charging regulation device where the spiral pusher conveys them to emery roll whose sharp appearance cuts the bran at a speed, making the maize particles rub against the sieve plate, so as to dehull the materials. The outlet is equipped with air suction inlet to further cool down the corn and clean the finished product for the second time.

Technical Parameter



Model

EmeryRoll
Diameter

(mm)

Emery Roll Length

(mm)

Spindle Speed

r/min

Yield

t/h

Power

kw

Air Volume

m³/h

Size

(L*W*H)

(mm)

MTPS-18Y/A

Φ180

660

1300

11.5

22



1370×700×1900

MTPS-18Y/B

Φ180

660

1300

11.5

22

1500-1800

1410×1220×2030

MTPS-25Y/A

Φ240

660

1050

2.5-3.5

30



1515×660×2100

MTPS-25Y/B

Φ240

660

1050

2.5-3.5

30

1800-2100

1515×1220×2100

MTPS-30Y/A

Φ300

800

850

4-6

37-45



1690×710×2180
