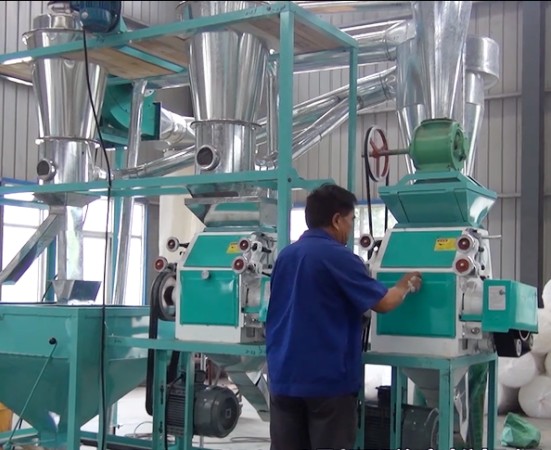

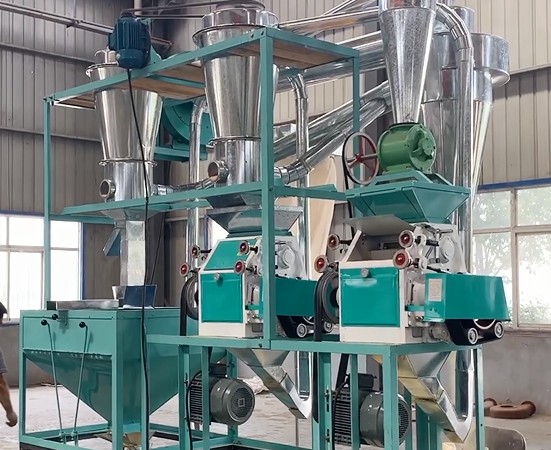

NF Series of Duplex Coarse Grain Milling Corn Mill Grinder Unit

Product properties
  • Summary:

    This series of grain milling unit is mainly used in small coarse grain flour processing plants.It is the ideal equipment for grain flour milling and corn flour milling.

Brief Introduction

NF Series of Duplex Coarse Grain Milling Corn Mill Grinder Unit features:
High automatic level, complete functions.
Low noise, no dust, easy operation and maintenance, low cost.
Scientific design and structure.

Function and Feature

NF Series of Duplex Coarse Grain Milling Corn Mill Grinder Unit features:
High automatic level, complete functions.
Low noise, no dust, easy operation and maintenance, low cost.
Scientific design and structure.

Working Principle


Firstly, corn or other grains enters into shelling machine inside cavity through hopper, then the roller rotates and pushes the materials to outlet. Next, the inside cavity narrows and the parts of the machine increase resistance to densify the materials by pressing and rubbing.Then the roller continuously rotates and pushes to increase friction between materials and machine parts. By this way, the machine separates the corn kernel and the corn bran.

Technical Parameter

type

output
(kg)

Roller specification
(mm)

Fast roller speed
(r/min)

power
(kw)

weight
(kg)

dimension
(mm)

NF—2235

400-450

Ф 222×350

650

15+3

1100

4000×1300×4200

NF—2240

500-550

Ф 222×400

650

22+3

1250

4000×1500×4200

NF—2250

600-650

Ф 222×500

650

30+3

1400

4000×1800×4200
